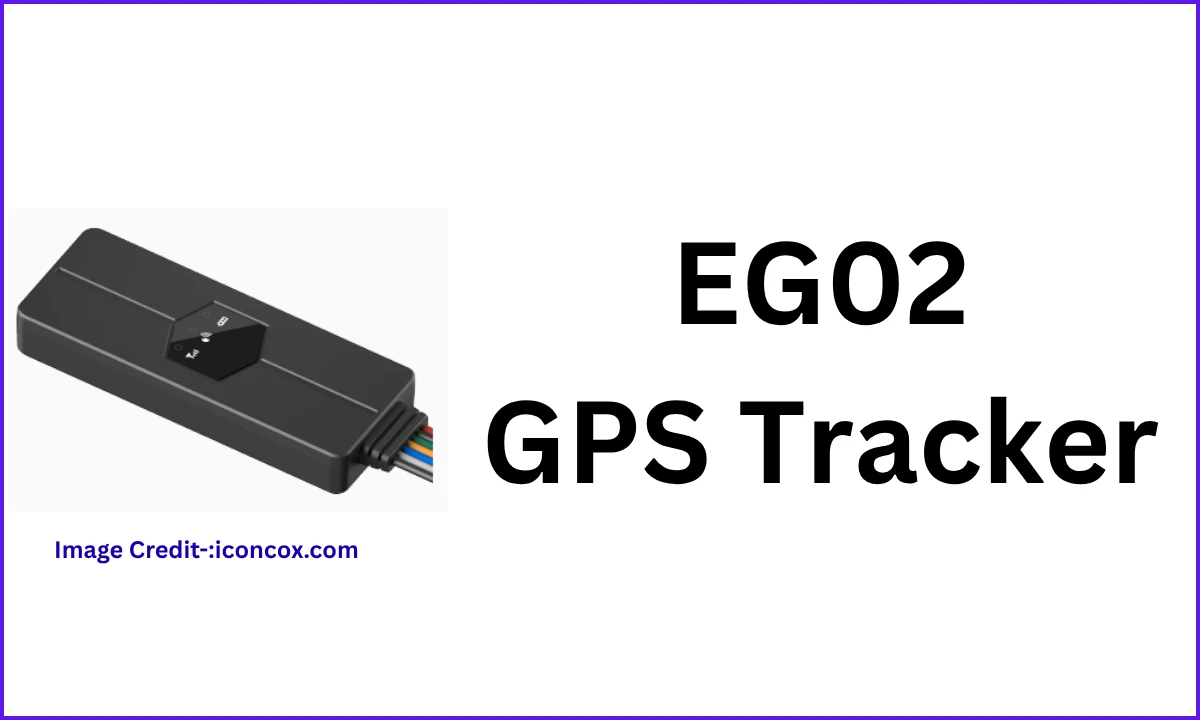

The EG02 is an intelligent GPS tracker developed by Jimi IoT (Concox) specifically designed for electric scooters (e-scooters), e-bikes, and light electric vehicles. Launched in early 2019, it addresses the growing micromobility market with a focus on anti-theft protection and fleet management. As compact as a cigarette lighter, the EG02 features a plug-and-play design that enables keyless operation and remote vehicle control via mobile app or SMS.
✨ Key Features
The EG02 is purpose-built to replace traditional keys with modern, app-based vehicle management.
-
Intelligent Anti-Theft System: The device automatically locks the wheels when armed. If unauthorized movement is detected, it triggers an audible alarm and can automatically cut off power to immobilize the vehicle. An external buzzer/siren can also be connected for enhanced deterrence and locating assistance.
-
Keyless Start & Remote Control: Users can lock, unlock, and start the vehicle remotely through a dedicated mobile app or via SMS commands, eliminating the need for physical keys.
-
Plug-and-Play Installation: Designed with a simple wiring harness, the EG02 connects directly to a vehicle’s existing ports without cutting or splicing wires, making installation quick and non-invasive.
-
Wide Operating Voltage (9-90V DC): The tracker supports a broad voltage range, making it compatible with various electric vehicle models, including 12V, 24V, 36V, 48V, 60V, and 72V systems commonly found in scooters, golf carts, and industrial equipment.
-
Multiple Alert Types: Instant notifications are sent for atypical events, including abnormal vibration, overspeeding, power disconnection, and geofence entry/exit.
-
Vehicle Battery Protection: Optimized power consumption prevents the tracker from draining the vehicle’s main battery.
-
GPS + LBS Positioning: Combines satellite and cellular tower positioning to ensure reliable location tracking even in areas with weak GPS signals.
⚙️ Technical Specifications
| Category | Specification |
|---|---|
| Manufacturer | Jimi IoT (Concox) |
| Communication | 2G GSM (GPRS Class 12) – Quad-band 850/900/1800/1900 MHz |
| GNSS | GPS + LBS; 66 GPS channels; Positioning accuracy <2.5m CEP |
| Tracking Sensitivity | –165 dBm |
| Acquisition Sensitivity | –148 dBm |
| TTFF (Open Sky) | Hot start ≤2 sec, Cold start ≤32 sec |
| Battery | 270 mAh / 3.7V Li-Polymer backup battery |
| Input Voltage | 9–90V DC / 8mA (at 36VDC) |
| Standby Current | ≤5 mA (on battery) |
| Data Storage | 64 Mb flash memory |
| SIM Type | Micro-SIM |
| Dimensions | 77.0 × 29.0 × 13.0 mm |
| Weight | 43 grams |
| IP Rating | IPX5 (Water jet resistant) |
| Operating Temperature | –20°C to +70°C |
| Interfaces | External buzzer/siren support |
| Key Functions | Remote lock/unlock, keyless start, automatic wheel lock |
📱 Applications and Summary
The EG02 is designed specifically for the micromobility sector, making it ideal for e-scooter and e-bike sharing programs, rental fleets, and personal vehicle security. Its compact size, wide voltage compatibility, and keyless operation have made it a popular choice among major electric vehicle manufacturers such as Yadea and Aima.
Unlike other Jimi IoT trackers like the JM-VL02 (which offers 4G connectivity for cars) or the BL10 (which combines a physical lock), the EG02 is a dedicated 2G solution focused on the unique requirements of light electric two-wheelers. Its combination of automatic wheel locking, audible alarms, and remote app control provides an effective, all-in-one security and management solution for the growing micromobility market.
