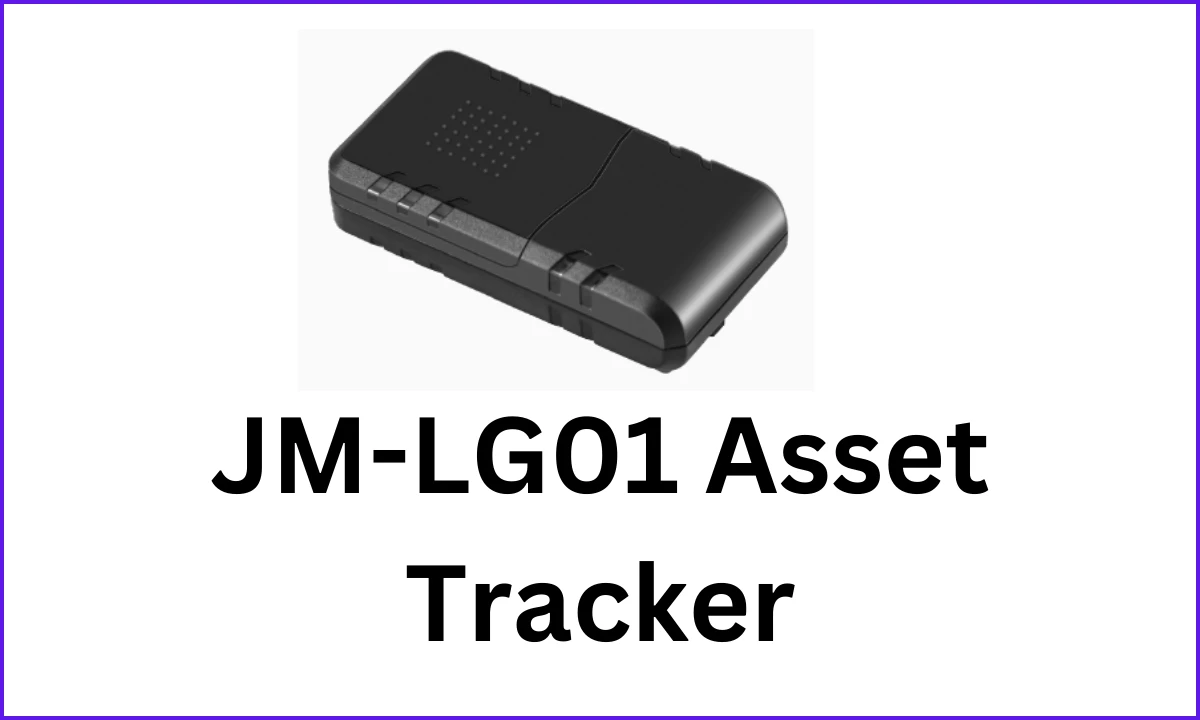

The JM-LG01 is a battery-powered asset GPS tracker designed for long-term, wire-free tracking of assets like vehicles in rental fleets, construction equipment, or shipping containers. Its key strengths are its multi-year battery life, compact and durable design, and tamper-detection features.
Key Feature of JM-LG01 Tracker-:
-
Ultra-Long Battery Life: Designed for low-maintenance, long-term deployments. With intelligent power management and a schedule of one location fix per day, the battery can last up to 3 years.
-
Multi-Technology Positioning: Ensures reliable location data by using a combination of GPS, LBS (cell tower), and Wi-Fi positioning. Wi-Fi positioning is particularly useful for saving power and improving indoor location accuracy.
-
Tamper and Theft Alerts: A built-in light sensor can detect if the device’s cover is removed or if it is taken out of a dark space (like a vehicle chassis), triggering an immediate dismantlement alarm.
-
Durable & Weatherproof: With an IPX5 water resistance rating, the tracker is protected against water jets, making it suitable for outdoor use in various weather conditions.
-
Easy Magnetic Installation: A powerful built-in magnet allows for tool-free, secure attachment to most metal surfaces, enabling near-zero installation time.
-
Intelligent Power Management: The device automatically switches between different operating modes (e.g., real-time tracking, deep sleep) based on movement (detected by an accelerometer) or preset schedules to conserve battery life.
Performance & Parameter of JM-LG01 Tracker-:
Product Type |
Country of Origin |
Dimension (L*W*H) |
Weight |
| Asset Tracker | China |
82.0×42.0x20.0 |
297g |
Number of Sims |
IP Rating |
Build in Battery |
Stand by Duration |
| 1 | IPX5 |
2800mAh |
45 hours |
Storage Logs |
Build in Memory |
Working Voltage |
GPS Chipset |
| 1000 | 32+32Mb | 3VDC/50mA | MTK High Sensitivity chip |
GPS Signal |
GPS Channels |
GPS Sensitivity |
GPS Positioning Accuracy |
| L1, 1575.42MHz C/A code | 32 |
Tracking:- 165dBm Capturing:- 14dBm |
<10 |
|
GPS ANT |
Frequency |
Internet Protocol |
GNSS Positioning |
| Internal | GSM:850/900/1800/1900 MHz | 1 | High-sensitivity GPS/GNSS receiver. Accuracy: < 2.5m CEP |
| Other Positioning | Operating Temperature | Sensors | Mounting |
| LBS (Base Station) and Wi-Fi | -20°C to +70°C (-4°F to +158°F) | Light sensor (for tamper detection), Accelerometer (for movement detection) | Strong magnetic base |
Function of JM-LG05 Tracker-:
|
Number of Digital Input |
⭕ |
|
Number of Digital Output |
⭕ |
|
Number of Analog Input |
⭕ |
|
ACC Detect (Ignition) |
✔ |
|
Oil/Power Control (Relay cutoff) |
✘ |
|
SOS |
✘ |
|
Air Condition |
✘ |
|
Fuel Detection |
✘ |
|
Bluetooth |
✘ |
|
OTA Upgrade |
✘ |
|
RS232 |
✘ |
|
RS485 |
✘ |
|
NB-IOT |
✘ |
|
TPMS |
✘ |
|
One Way Communication |
✘ |
|
Two Way Communication |
✘ |
|
Temperature Sensor |
✘ |
|
Wi-Fi |
✘ |
|
Camera/Video |
✘ |
|
Accelerometer Sensor |
✘ |
|
G-Sensor |
✘ |
|
Light Sensor |
✘ |
📊 Reported Parameters and Alarms
When integrated with a software platform like Wialon or Navixy, the JM-LG01 can report a wide array of data points and trigger specific alarms.
|
Parameter |
Description |
Alarm State ( |
Description |
|---|---|---|---|
|
voltage / voltage_lvl |
Battery voltage level . |
|
Normal |
|
gsm / rssi |
GSM signal strength. |
|
Power cut alarm / Disassemble alarm |
|
mcc / mnc / lac / cell_id |
Cellular tower information for LBS. |
|
Vibration alarm |
|
acc |
ACC status (ignition/movement). |
|
Enter / Exit fence alarm |
|
data_mode |
Current GPS data upload mode. |
|
Over speed alarm |
|
alarm_state |
Numeric code for specific alarm events . |
|
Low battery alar |
⚙️ Configuration and Setup
-
Server Settings: For the device to communicate with a tracking platform, specific server parameters must be configured, typically via SMS commands. For example, for the Wialon platform, the server port is 21905. For other platforms like Navixy, the port is 47755.
-
SMS Commands: The device is configured by sending SMS messages in a specific format. Common commands include setting the APN for cellular data (
APN,apn,user,password#), configuring the tracking server (SERVER,1,address,port,0#), and setting the upload interval (TIMER,60#).
Documents & Manual of JM-LG01 Tracker
Download User Manual-: Download Now
