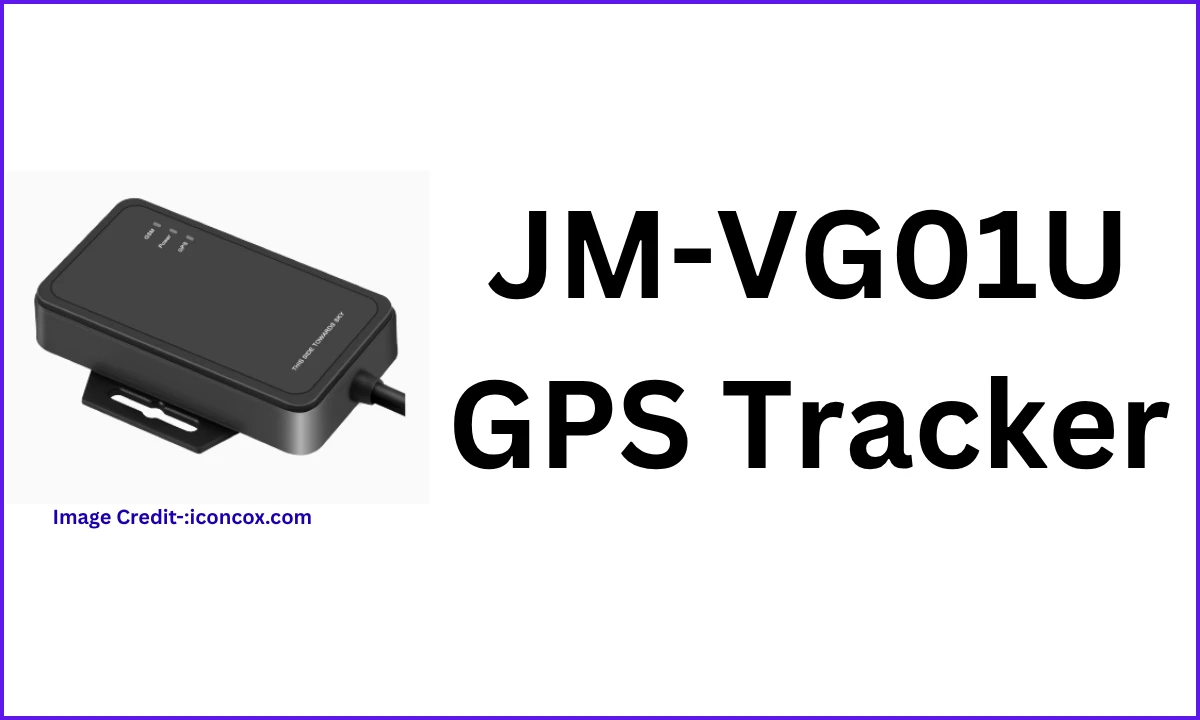

The JM-VG01U is an advanced 2G GPS tracker developed by Jimi IoT (Concox) specifically designed for Usage-Based Insurance (UBI) and sophisticated fleet management applications. It distinguishes itself from other Jimi IoT models by integrating an Inertial Navigation System (INS) and a 6-axis motion sensor, enabling precise location tracking and detailed driver behavior analysis even in environments where GPS signals are weak or unavailable.
✨ Key Features
The JM-VG01U is built around its advanced analytical capabilities. Its standout feature is INS-aided GPS tracking, which uses a 3-axis accelerometer and 3-axis gyroscope to calculate position via dead reckoning. This ensures continuous tracking in tunnels, underground parking lots, and urban canyons where standard GPS fails.
-
Driver Behavior Analysis: The tracker monitors eight types of improper driving behaviors, including harsh acceleration, harsh braking, harsh cornering, sudden lane changes, collision, skidding, rollover, and abnormal vehicle attitude. This data is crucial for UBI programs and driver safety improvement.
-
Remote Vehicle Control: Supports remote fuel/power cut-off via an installed relay, allowing fleet managers to immobilize a vehicle in theft situations. A discreet panic button (SOS) can also be connected for emergency alerts.
-
High-Precision Mileage: Features a unique algorithm that delivers mileage accuracy of ≥98%, with an error margin of less than 2%, enabling precise operational cost calculations.
-
Rugged & Compact Design: With an IP65 dust and water resistance rating, the device is protected against harsh environmental conditions. It measures just 80.0 x 67.0 x 16.0 mm and weighs only 63g, making it easy to conceal.
-
Ignition Detection: Constantly monitors the ACC/ignition status to accurately track vehicle usage and idle time.
⚙️ Technical Specifications
| Category | Specification |
|---|---|
| Manufacturer | Jimi IoT (Concox) |
| Communication | 2G GSM (GPRS) – Quad-band 850/900/1800/1900 MHz |
| GNSS | GPS, GLONASS, GALILEO with INS (Inertial Navigation System) |
| Positioning Accuracy | <2.5m CEP |
| Sensors | 6-axis (3-axis accelerometer + 3-axis gyroscope) |
| Battery | 450mAh / 3.7V industrial-grade Li-Polymer backup |
| Input Voltage | 9-36V DC (compatible with cars, trucks, and buses) |
| Interfaces | 2 Digital Inputs (ACC, SOS), 1 Digital Output (Relay) |
| Data Storage | 32+32Mb flash memory |
| Dimensions | 80.0 x 67.0 x 16.0 mm |
| Weight | 63g |
| IP Rating | IP65 (Dust-tight & water jet resistant) |
| Operating Temp. | -20°C to +70°C |
📱 Applications and Summary
The JM-VG01U is purpose-built for scenarios demanding high data granularity and reliability. Its ability to analyze driving behavior and maintain location in signal-dead zones makes it ideal for Usage-Based Insurance (UBI) telematics, where insurers base premiums on driving habits, as well as for auto finance and comprehensive fleet management. While it operates on 2G networks, its advanced INS technology and analytical depth make it a powerful tool for markets with stable 2G infrastructure. If you are comparing it to the 4G JM-VL02 for future network compatibility or the X3 for I/O expansion needs, I can provide further details.
