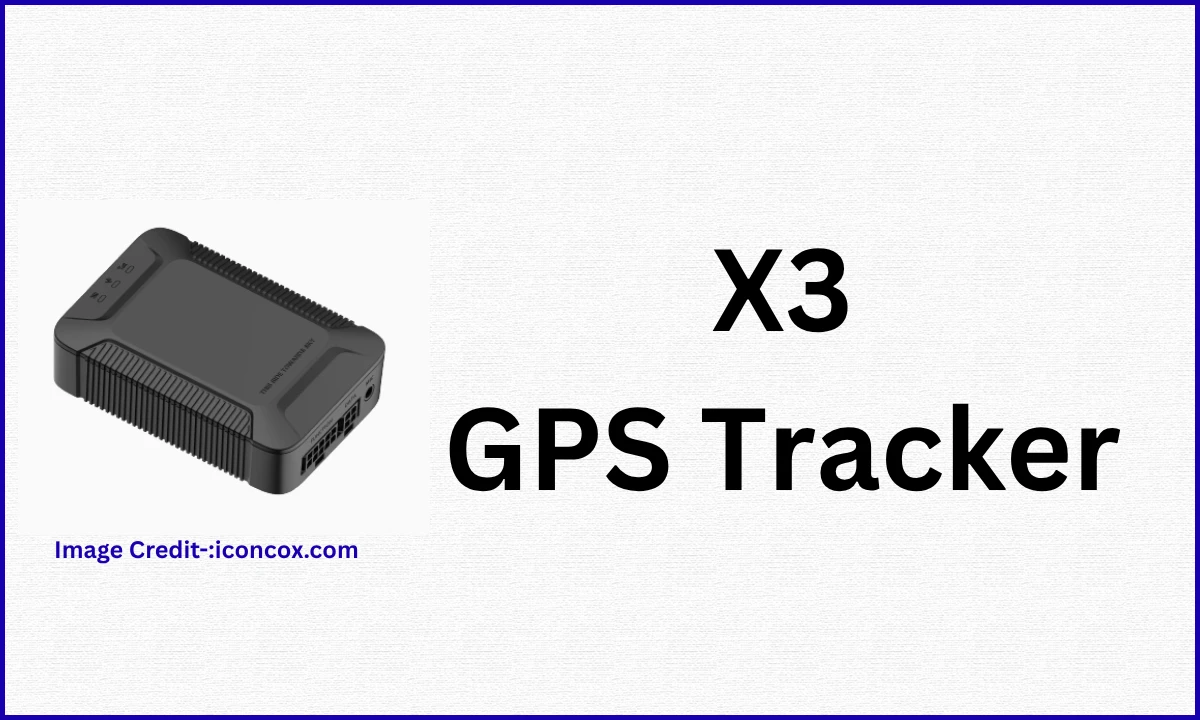

The X3 Tracker is a 2G GSM multifunctional GPS tracker manufactured by Jimi IoT (Concox), designed for vehicle tracking, fleet management, and security monitoring applications. It features a compact, heat-resistant design with extensive I/O ports to support a wide range of external peripherals, making it highly adaptable for diverse tracking scenarios.
✨ Key Features
The X3 Tracker is built for flexibility and comprehensive vehicle monitoring. Its standout feature is the combination of RS232 and TTL serial interfaces, which support connections to fuel level sensors, temperature sensors, and RFID readers for driver authentication.
-
Communication & Control: Supports remote fuel/power cut-off via an installed relay, enabling vehicle immobilization in theft situations. It also features two-way communication when an external microphone and speaker are connected, allowing voice monitoring up to 5 meters.
-
Driver Behavior & Safety: The built-in accelerometer (G-sensor) analyzes driving patterns and provides alerts for harsh acceleration, harsh braking, harsh cornering, and collision detection. An optional over-speed buzzer can audibly remind drivers to reduce speed.
-
Security & Monitoring: Supports a dedicated panic button for emergency alerts, door status detection, and low voltage alerts when external power drops below a threshold. It also includes GPS + LBS positioning for reliable location tracking even in areas with weak satellite signals.
-
Data Storage: Equipped with 32+32MB flash memory, ensuring data continuity when the device enters a GSM blind zone.
⚙️ Technical Specifications
| Category | Specification |
|---|---|
| Manufacturer | Jimi IoT (Concox) |
| Communication | 2G GSM (GPRS Class 12) – Quad-band 850/900/1800/1900 MHz |
| GNSS Positioning | GPS + BDS + LBS; Accuracy <2.5m CEP; Tracking Sensitivity -165dBm |
| TTFF (Time to Fix) | Hot Start ≤1 sec, Cold Start ≤35 sec |
| Interfaces | RS232 & TTL serial ports; Digital inputs (ACC, SOS, input); Digital outputs (Relay, output1, output2) -2 |
| Battery | 450mAh / 3.7V industrial-grade Li-Polymer backup battery |
| Input Voltage | 9V to 36V DC (suitable for cars, trucks, and buses) |
| Data Storage | 32+32MB Flash Memory |
| Dimensions | 80.9 x 55.8 x 23.4 mm |
| Weight | Approx. 95g |
| Operating Temp. | -20°C to +70°C |
| LED Indicators | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM Type | Standard-SIM |
📱 Applications and Summary
The X3 Tracker is a versatile 2G GSM solution designed for fleet management, truck logistics, and vehicle security. Its extensive I/O capabilities allow integration with fuel sensors, temperature sensors, RFID readers, and external microphones, making it suitable for applications ranging from fuel theft prevention to driver identification. While it operates on 2G networks, it remains a reliable choice for markets where 2G infrastructure is still available.
